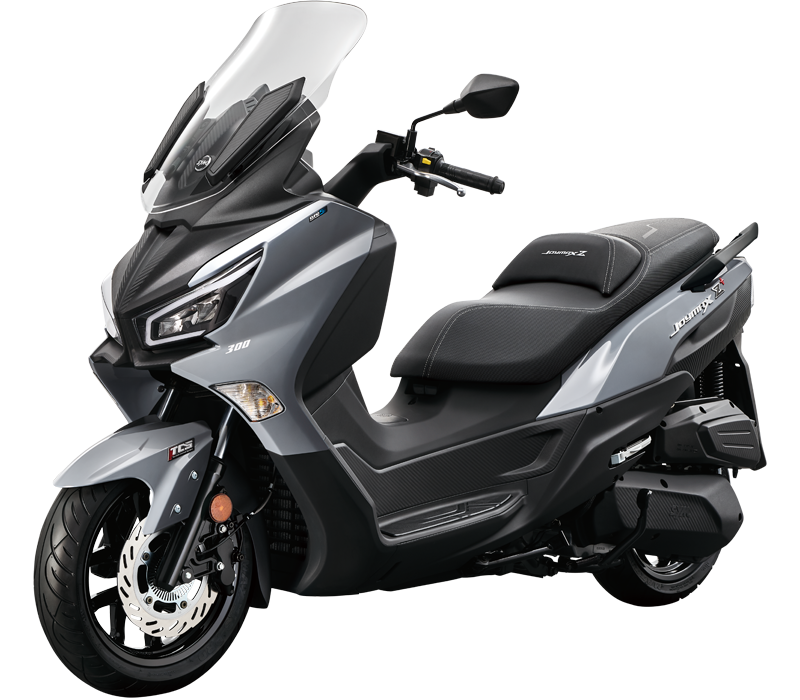

Joymax Z 300

2024

SYM

JOYMAX Z is designed to maximize your riding enjoyment. With its compact body that achieves a fine harmony between agile sports handling and business class comfort.

Featuring:
Joymax Z was designed to maximize your riding enjoyment. Its compact body achieves the fine harmony between the agile sports handling and the business class comfort. Since it was firstly revealed in EICMA 2018, Joymax Z has been being the best bargain of the SYM Maxi scooter. However, SYM is still planning to make Joymax Z even more competitive in the global markets.

This brand new trendy apparel is favored by the public. With the SYM technology, Joymax Z now features the up to date look, high quality, outstanding performance, and affordable price.




Includes:

  • Registration
  • Insurance
  • VAT

TECHNICAL SPECIFICATIONS



Dimensions

Length x Width x Height (mm)
2192 x 760 x 1440

Wheel Base (mm)
1535

Curb Weight
188 kg

Front Suspension
Telescopic Fork

Rear Suspension
Unit Swing Arm

Front/Rear Rim Material
Aluminum/ Aluminum

Front Tire Dimensions
120/70-14

Rear Tire Dimensions
140/60-13

Front Brakes Type/Diameter
HYDRAULIC 260 mm + ABS

Rear Brakes Type/Diameter
HYDRAULIC 240 mm + ABS

Fuel Capacity
12 L

Seat Height(mm)
747 mm

Power System

Emissions Standard
E4

Engine Type/Cylinder
4-stroke engine, single cylinder

Displacement
278.3 c.c.

Fuel System
GASOLINE

Max. Horsepower
18 kW / 8,000 rpm

Max. Torque
27.3 Nm / 6,750 rpm

Max. Speed
> 129 km/h

Cooling System
Liquid

Transmission
C.V.T.

Electric System

Starting System
Electrical starter

Headlight
12 V 60W / 55W × 1

Taillight
LED

Front Position Lamp
12V 5W x2

Front/Rear Turning Signal Light
12 V 10W × 2/ 12 V 10W × 2
